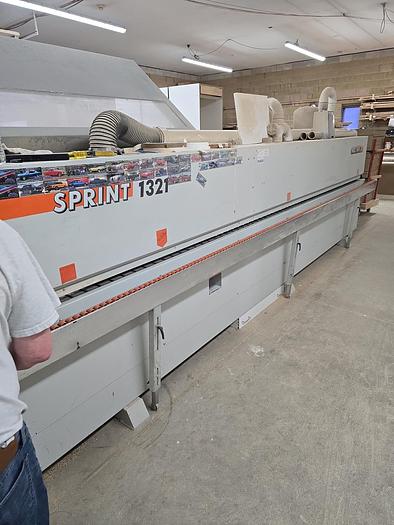

2008 Holzher Sprint 1321 edgebander with servo, premill and corner rounding

2008 Holzher Sprint 1321 edgebander with servo, premill and corner rounding
$17,500 (USD)
or
Call 508-303-0600
Description
2008 Holzher Sprint 1321 edgebander with pre-mill & corner rounding.
- Cartridge glue system with 5 minute heat up with servo glue height adjustment

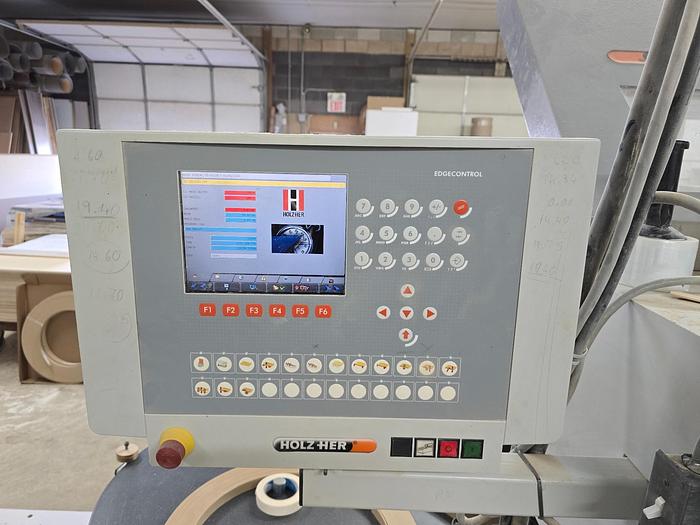

- EDGECONTROL PLC controls with servo adjustments
- Motorized pressure beam thickness adjustment
- Programs can be easily created and recalled with graphic interface but can be run manually without need to create programs
- Panel thickness: 6mm min - 50mm max
- Feed speed: 41 Ft/min
- Max coil thickness: 3mm
- Max strip thickness: 15mm

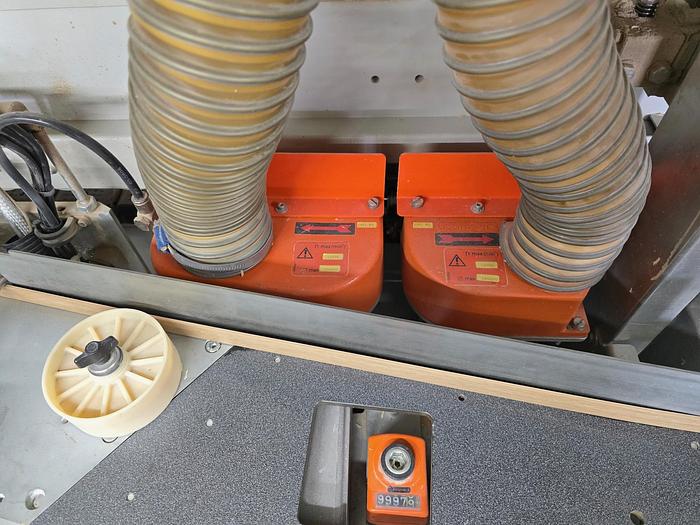

- Two motor Premilling unit #1961 with two (2) 2.0kw motors at 12,000 rpm

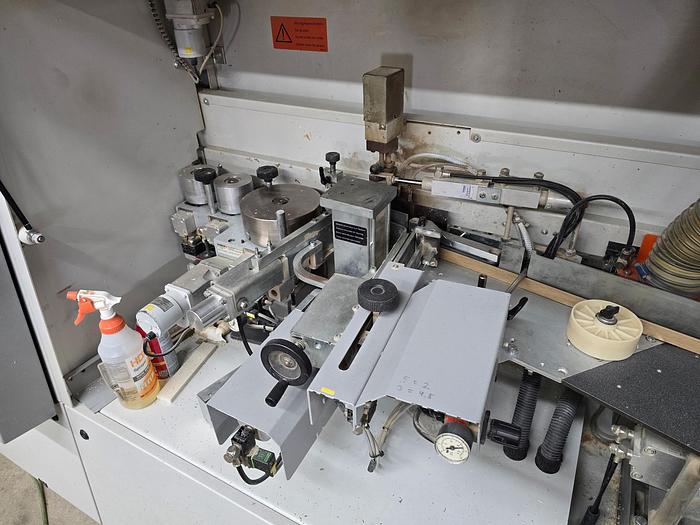

- Automatic coil, strip feed magazine #1903
- Tractor feed belt system with edge guide for strips and coil material
- Three roller servo controlled pressure section

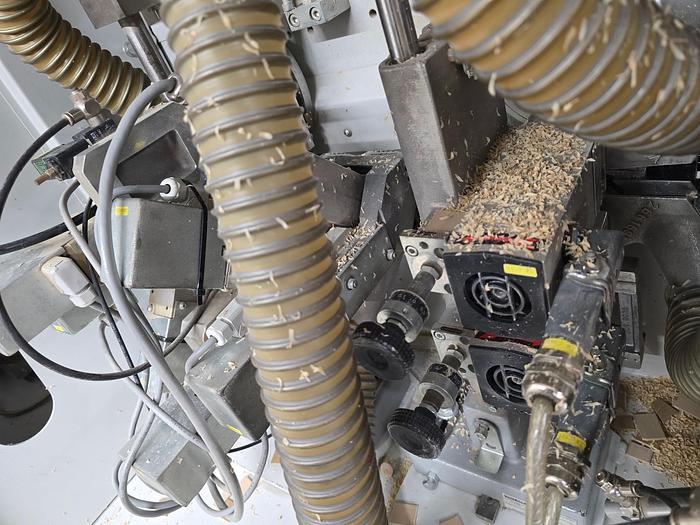

- Double motor end trim unit # 1918 with PCS ("pneumatic change over) and Uni-point axis system to eliminate set up

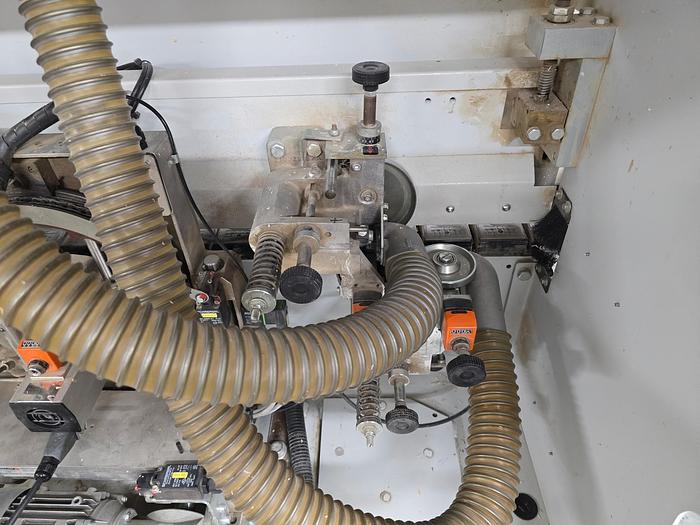

- Top and bottom trim unit #1823 (stacked) with SIKO trim adjustments

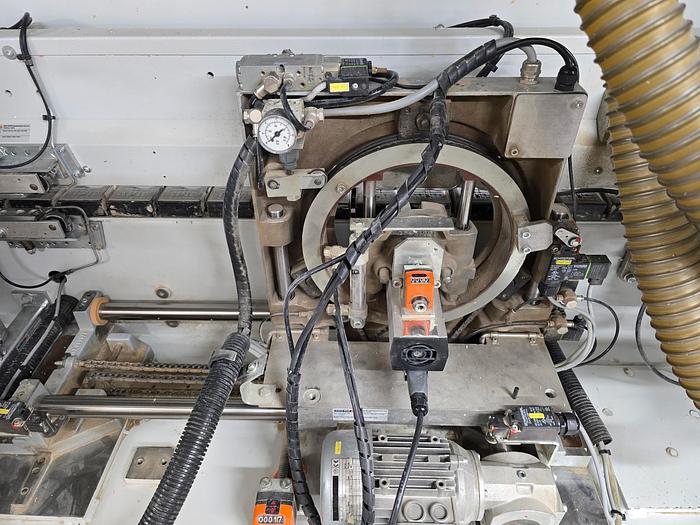

- Top and bottom tilting flush trim unit #1942 with servo cutter positioning from flush, chamfer and radius
- Corner rounding unit # 1832 with single motor for 3mm PVC with SIKO adjustments
- Scraping unit with PCS in/out adjustment from panel
- Top and bottom glue scrape station with PCS on/off
- Top and bottom oscillating Buffing unit
- Micro-processer line control no limit switches

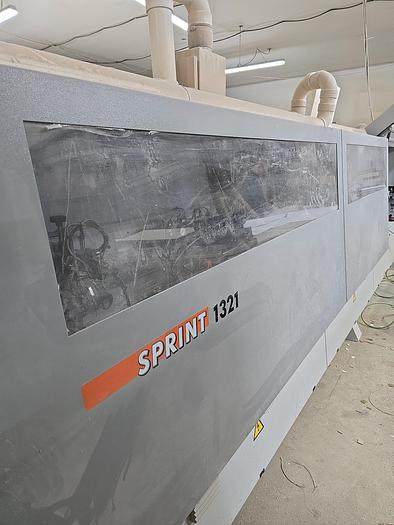

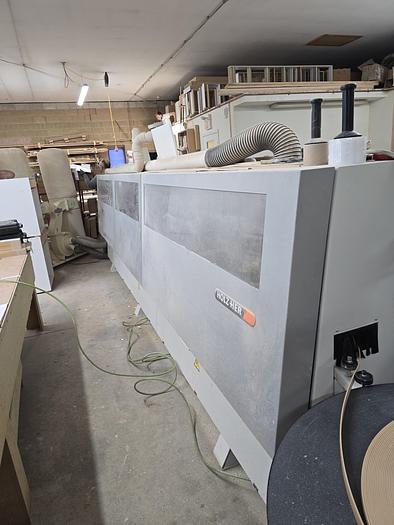

- Sound enclosure with interior lights
- 230v 3ph
Can be seen in CT by appointment.
Lease to own for approximately $345/months-60mos available
Specifications
Manufacturer | Holzher |
Model | Sprint 1321 edgebander with servo, premill and corner rounding |
Year | 2008 |
Condition | Used |

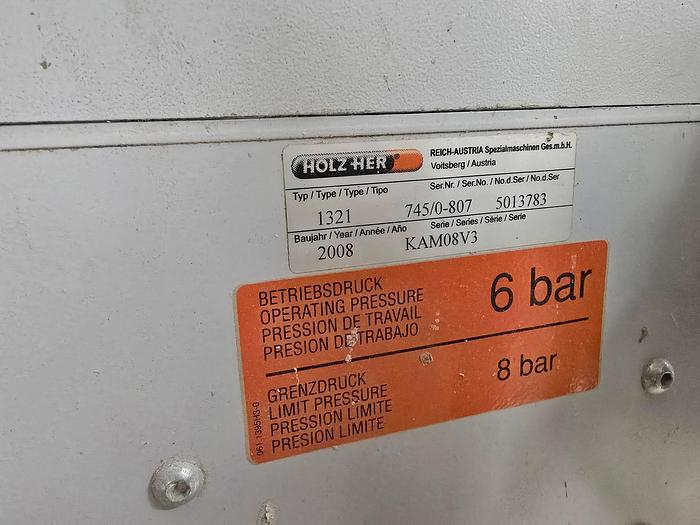

Serial Number | 745-0-807 |
Stock Number | 00035 |
