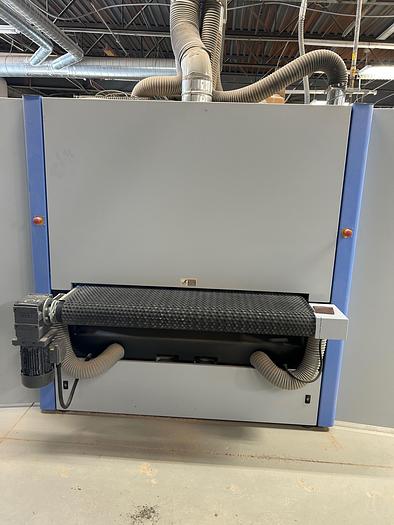

2013 Butfering SWT225 53" double head wide belt sander with segmented platen

Very well kept Butfering SWT225 53" wide belt sander. This constant pass-line sander (fixed table) will be available late May, early June.

Features:

Constant passline 900mm from floor

Automatic thickness setting system

Star Delta soft start motor controls

Electronic belt oscillation

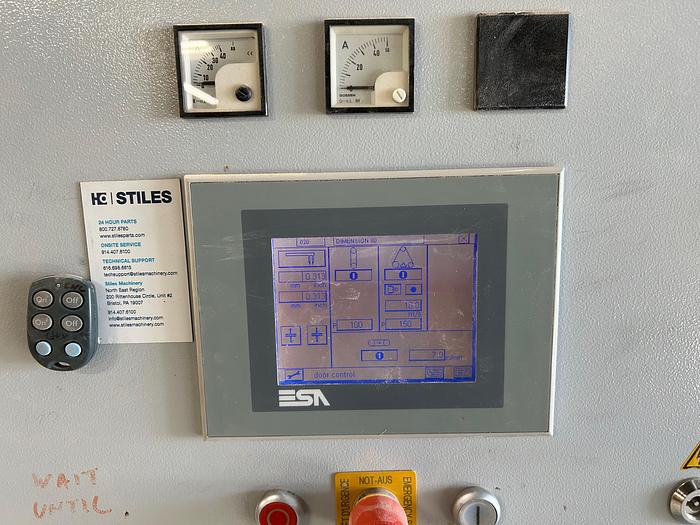

Touch screen controls with storage for 125 programs

Rubberized pressure rolls

Min thickness: 1/8"

Max thickness: 6"

Belt size: 54" x 85"

Working width: 53"

Variable speed conveyor by inverter 8-42 ft/min

Roller infeed extension table

Sequential motor starting by program

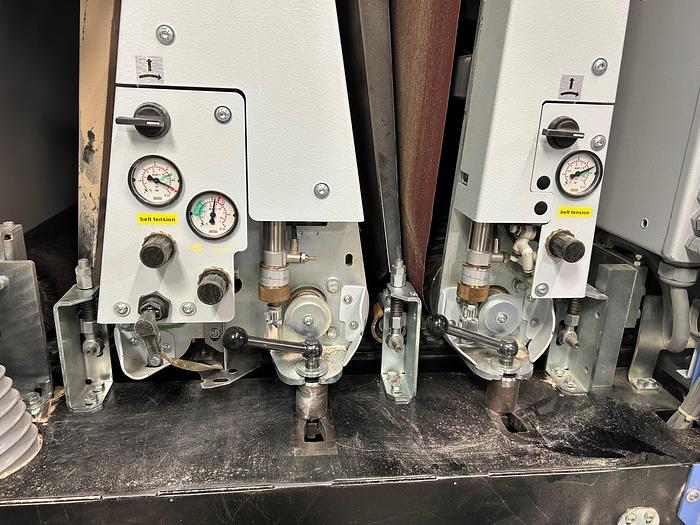

Head #1: Steel roller with 30Hp drive with automatic grit set with 7" dust port

Head #2: 25HP Combination drum with electronic segmented platen; 35mm wide segments, 85 shore rubber roller with automatic grit set; 3" wide platen

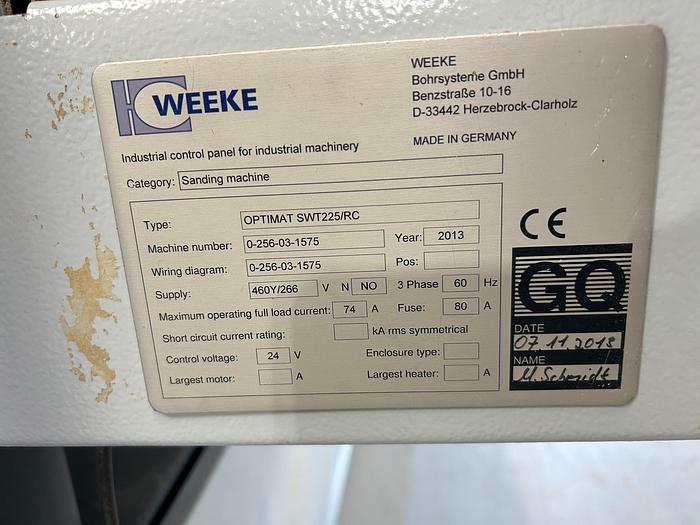

Machine wired 460v 3ph; 85 amps

Air jet blowers on platen head to cool and clean belt

7" dust port

Both heads driven by "poly V-belts"

Vacuum table with independent 5hp blower motor located inside the machine

Panel cleaning brush with 1.2Hp motor and 5 1/2" dust port

Total dust cfm requirement: 4100

2013 machine
