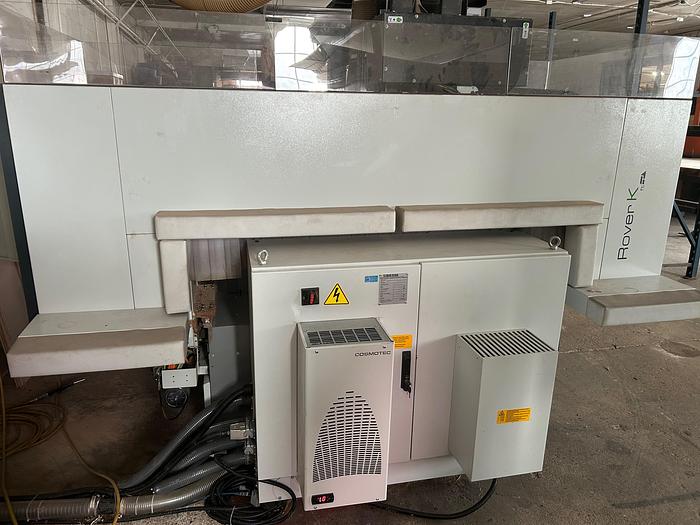

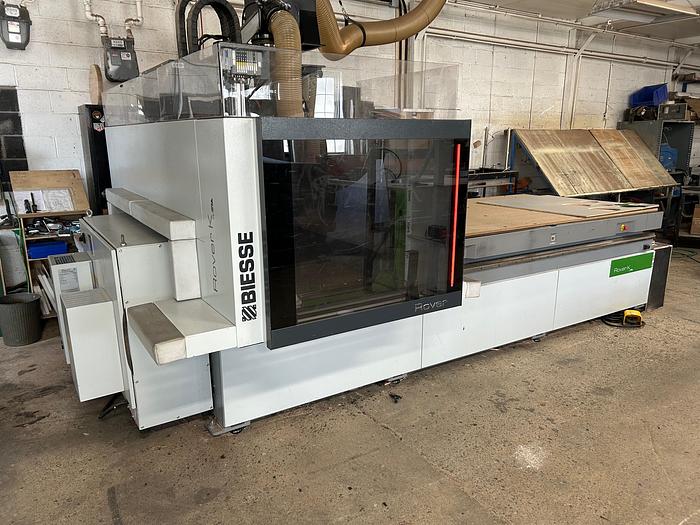

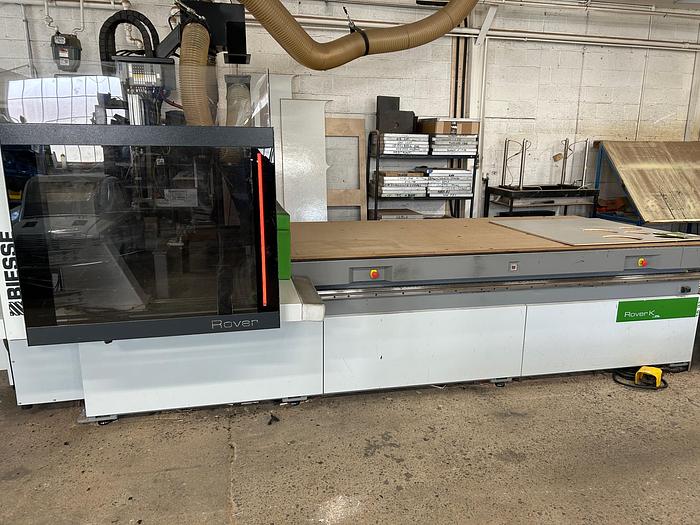

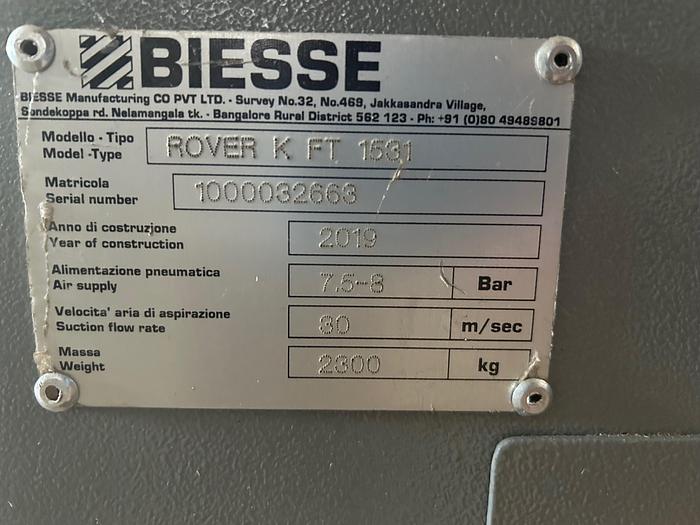

2019 Biesse Rover K 1531 5' x 10' Flat table CNC router

Biesse Rover K 1531FT CNC Router.

• 2019 machine in very good condition
• 5' x 10' Phenolic matrix table

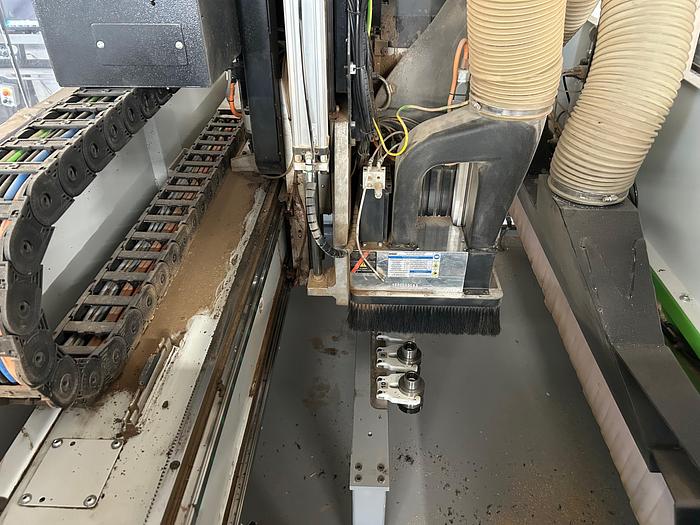

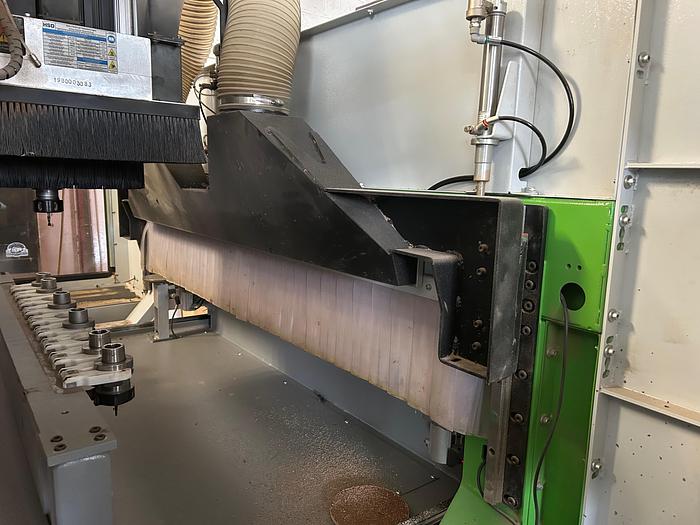

• Built in push off device with dust collection flange to sweep the cut parts and vacuum the table simultaneously
• Automatic segmented vacuum table with eight (8) auto-controlled zones based on panel size.
• Max working thickness: 170mm = 6.69"
• Blowing unit with 4 ring nozzle at router tool to improve cut quality and improve dust collection
• Pre-arranged for "C" axis- 4th axis
• Helical rack and pinion drive in X and Y axes; ball screw in Z axis
• Precision linear guides on all 3 axes and on sweeping device
• X axis speed: 82 ft/min (25m/min)
• Y axis speed: 82 ft/min (25m/min)
• Z axis speed: 82 ft/min (25m/min)
• BH10 10 spindle boring unit driven by 2.5Hp variable speed motor 2800-6000 rpm; 5 spindles in X, 5 spindles in Y
• 12Hp HSK spindle with ceramic bearings, variable speed from 1000-24,000 rpm
• HSK F63 tooling
• 10 Position rack tool changer mounted on the end of the machine
• Automatic lubrication
• Tool touch off device to set tool depth
• One working area; 5' x 10' with 2 left origins, 1 front, 1 rear
• Two(2) left and (1) front reference pin on the left hand side of table
• Two(2) right and (1) front reference pin on the right side of table
• Front and back precision linear stops for part placement and to contain the cut parts being pushed off

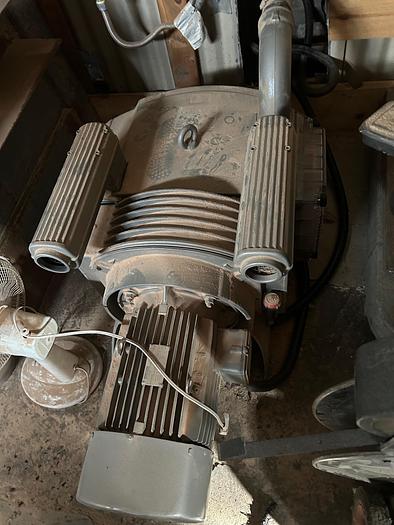

• 300m3/hr vacuum pump

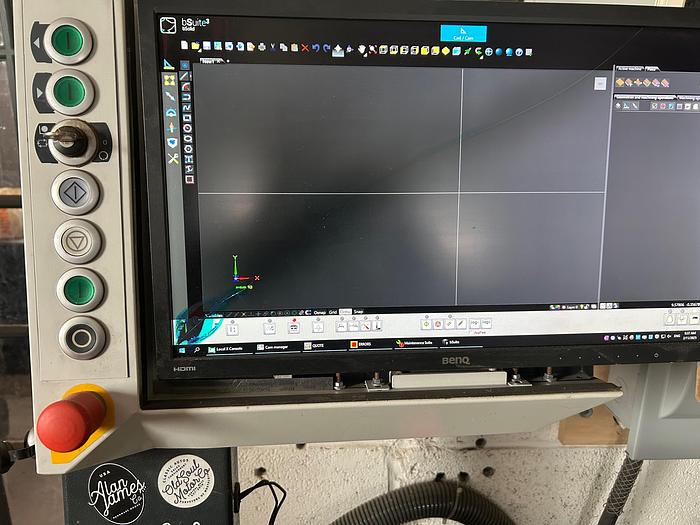

• PC front end with 21" touch screen, mouse and keyboard
• Software: B-Solid 3D Cad/Cam with B-Nest nesting module
• Controller: Biesse BH660 PC based with WRT (Windows Real Time) technology
• Hand held control keyboard
• Includes extra HSK F63 tool holders and collets
• Can be seen by appmt
• Local set up and training by previous operator available at reasonable cost to buyer

New today: $115k
