2003 SAC TS120 shaper

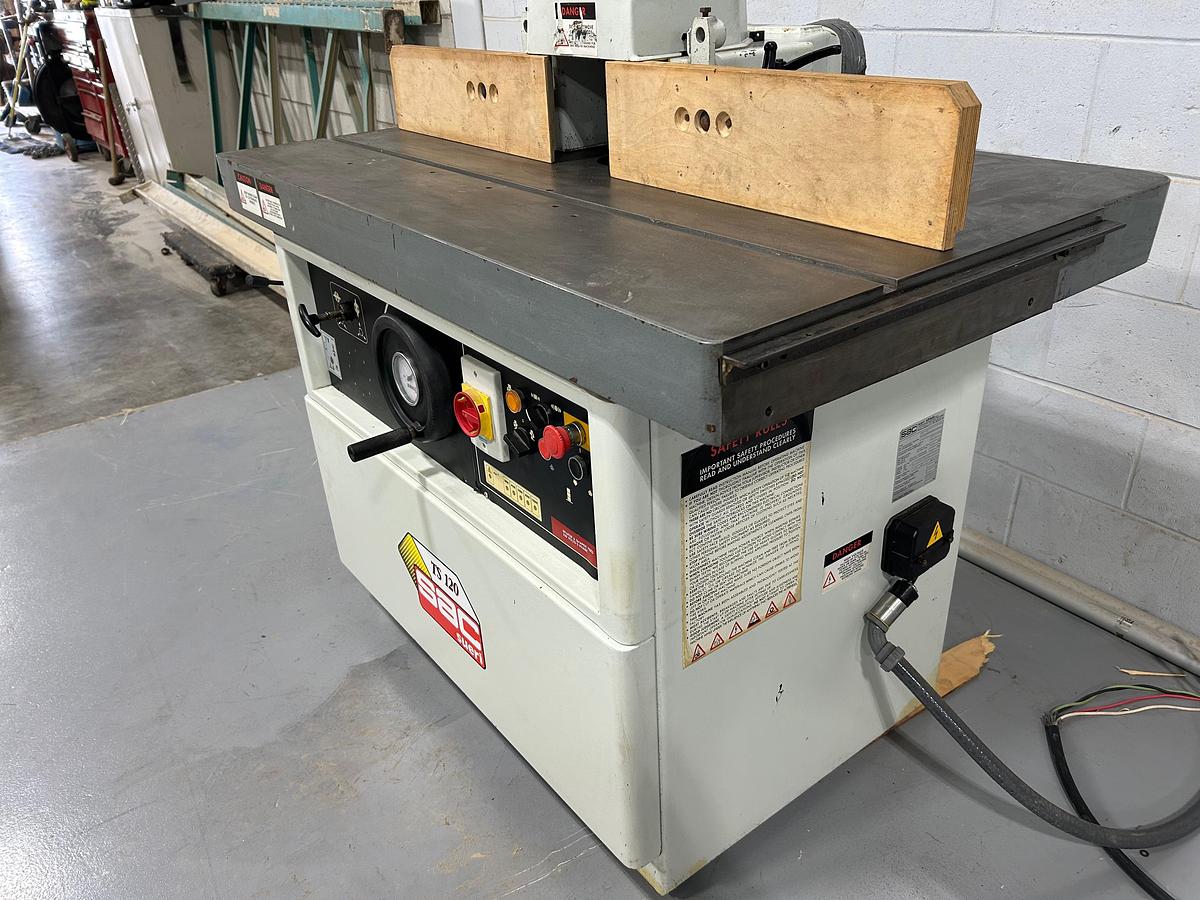

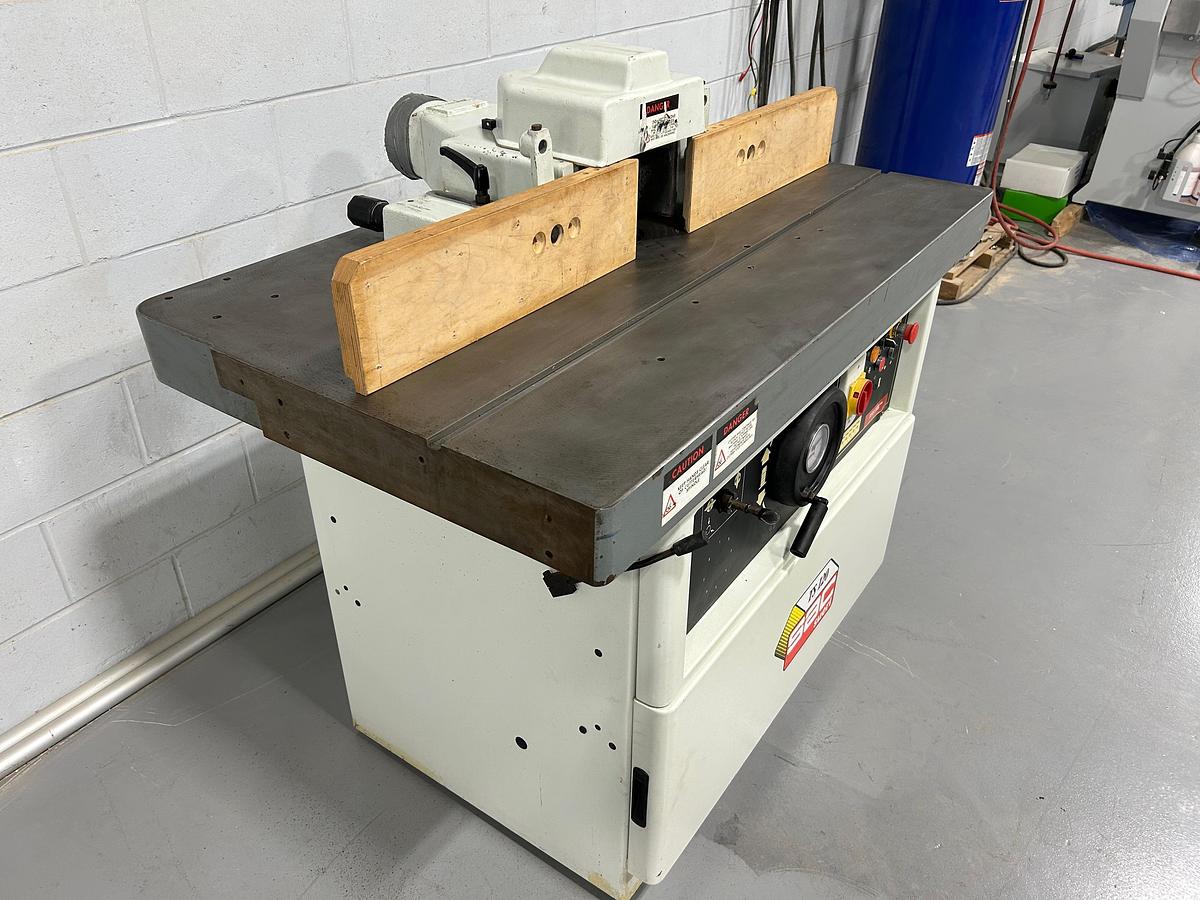

SAC TS120 Heavy duty shaper

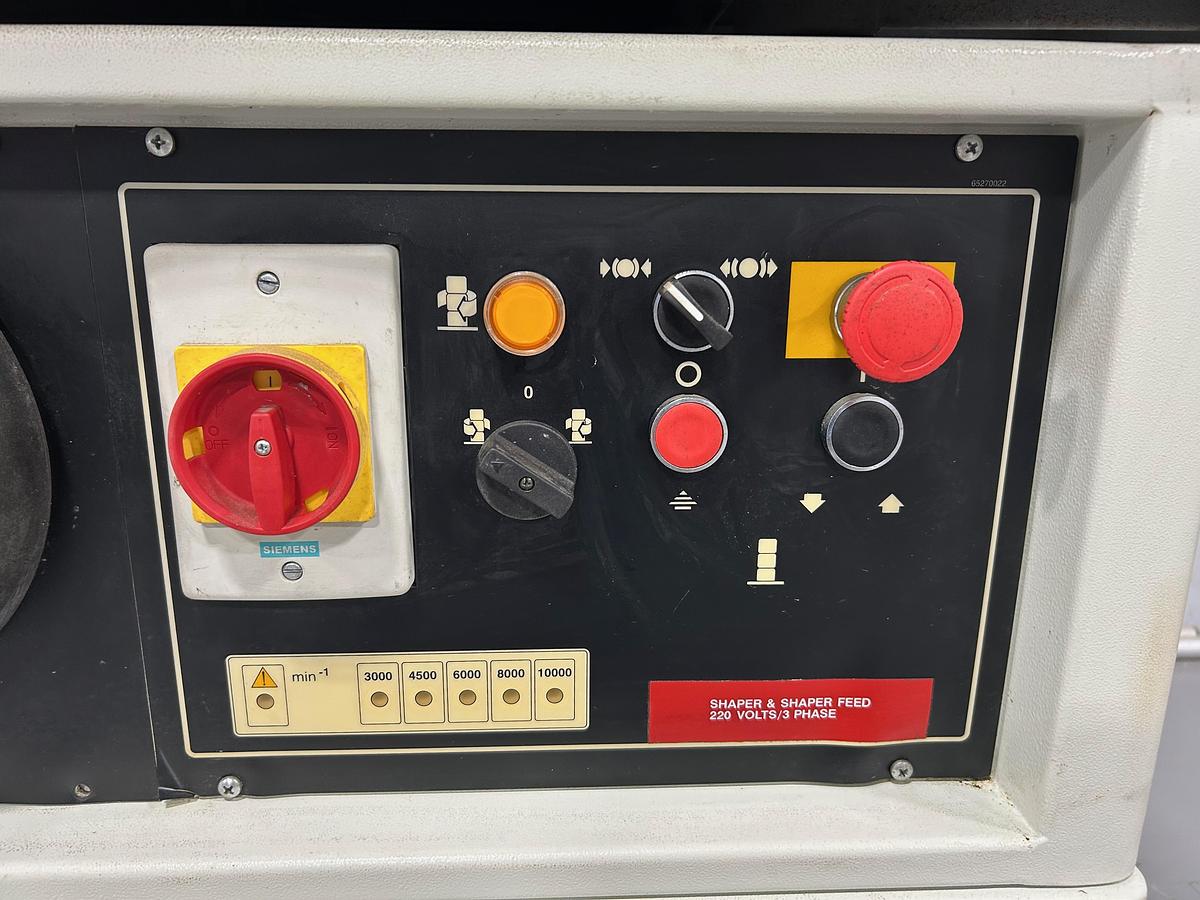

• Magnetic controls with overload protection
• Self braking motor

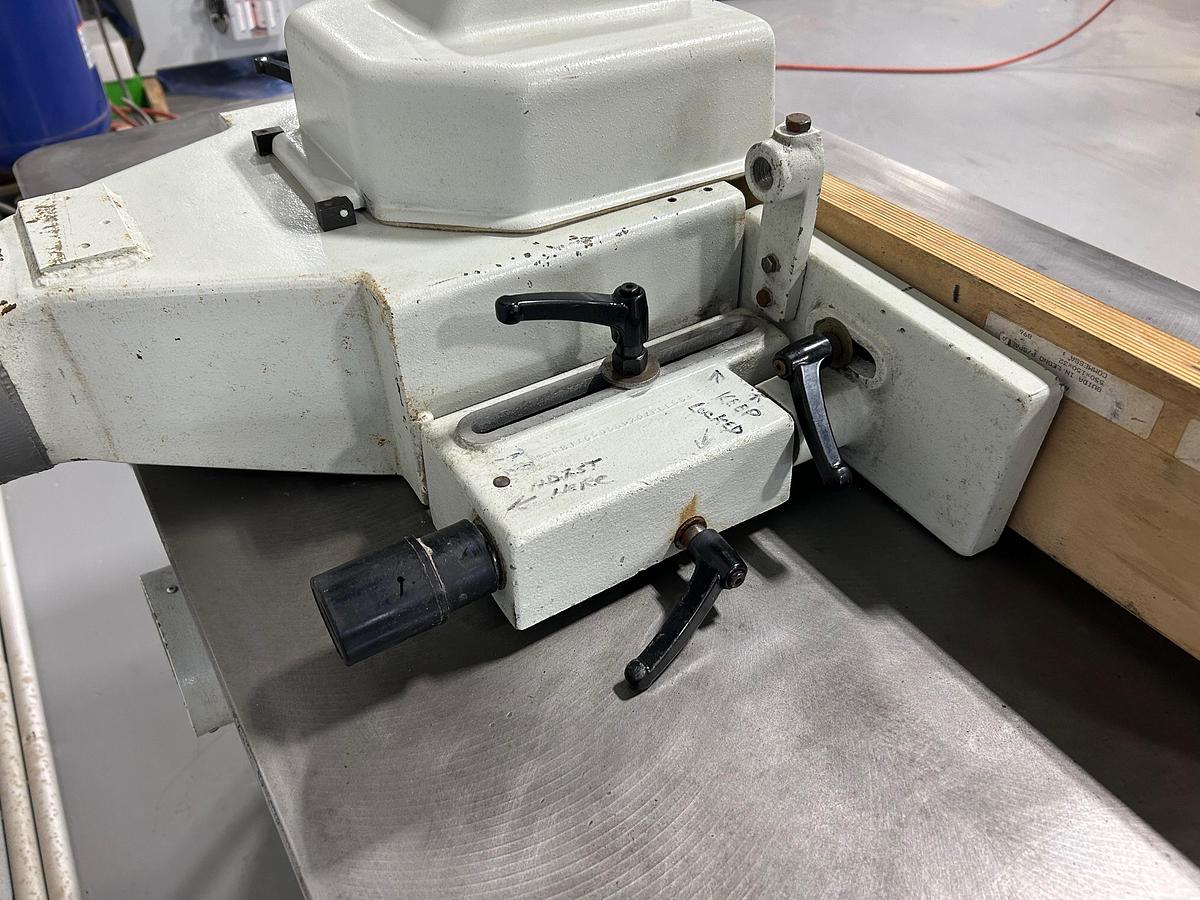

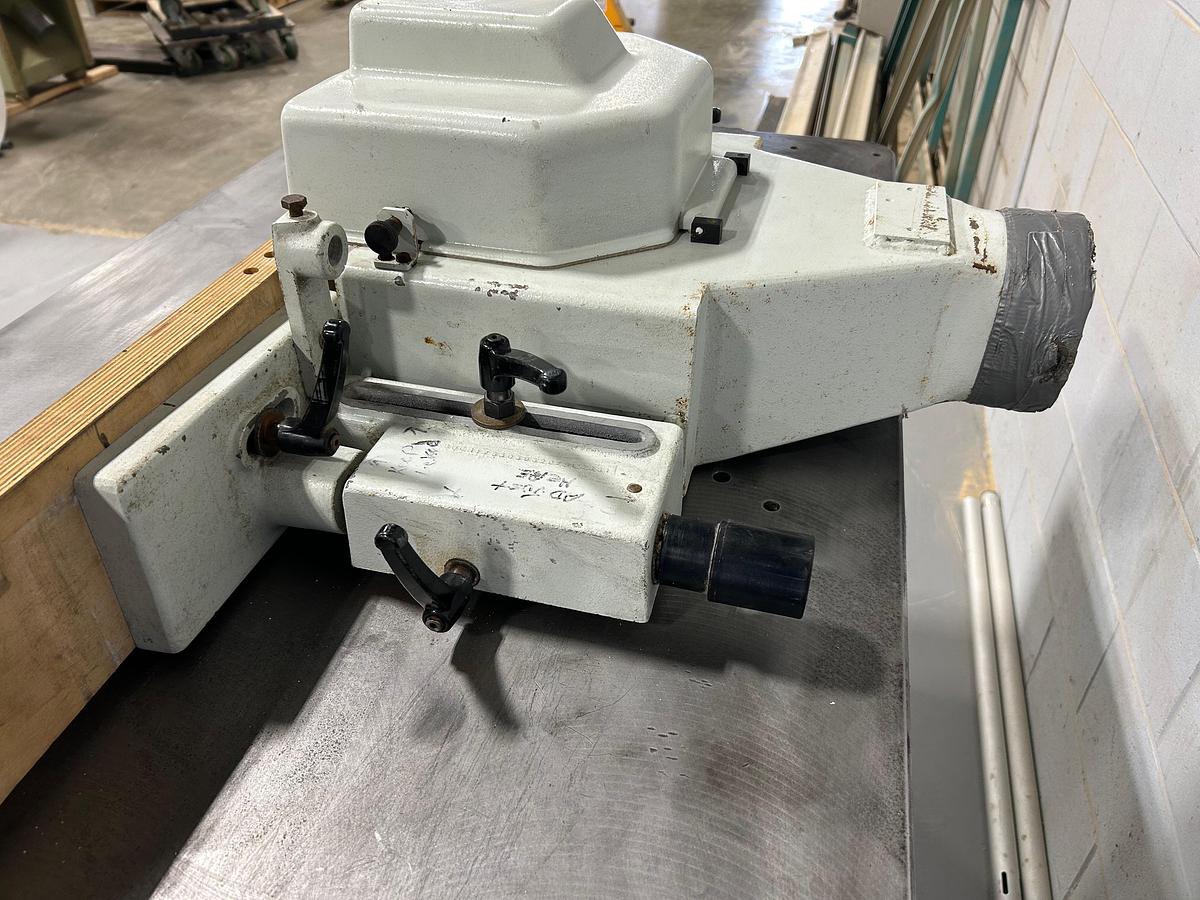

• Guard assembly with
• Fence assembly with micro adjust on oufteed fence
• Miter slot in table
• Five spindle speeds: 3000/4500/6000/8000/10,000 rpm

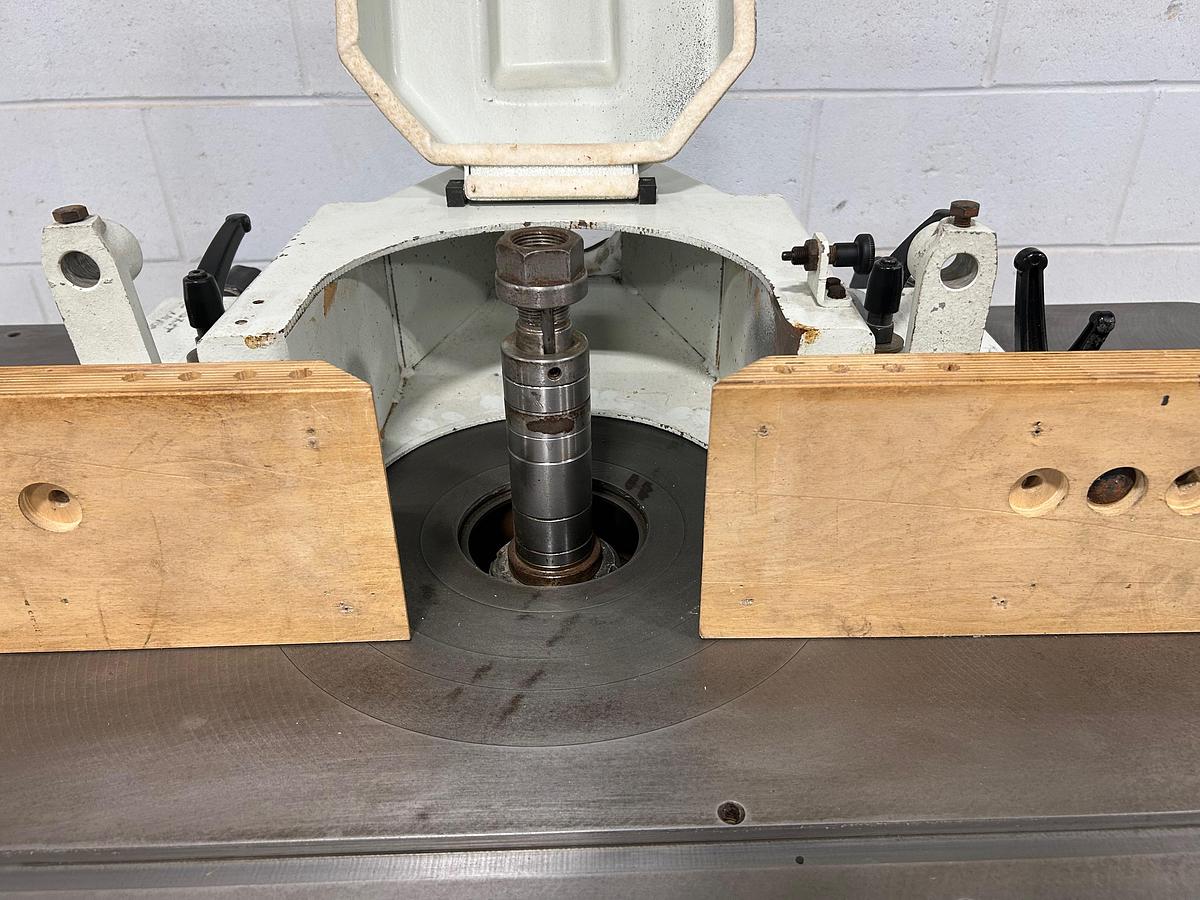

• Interchangeable spindles
• Reverse rotation switch

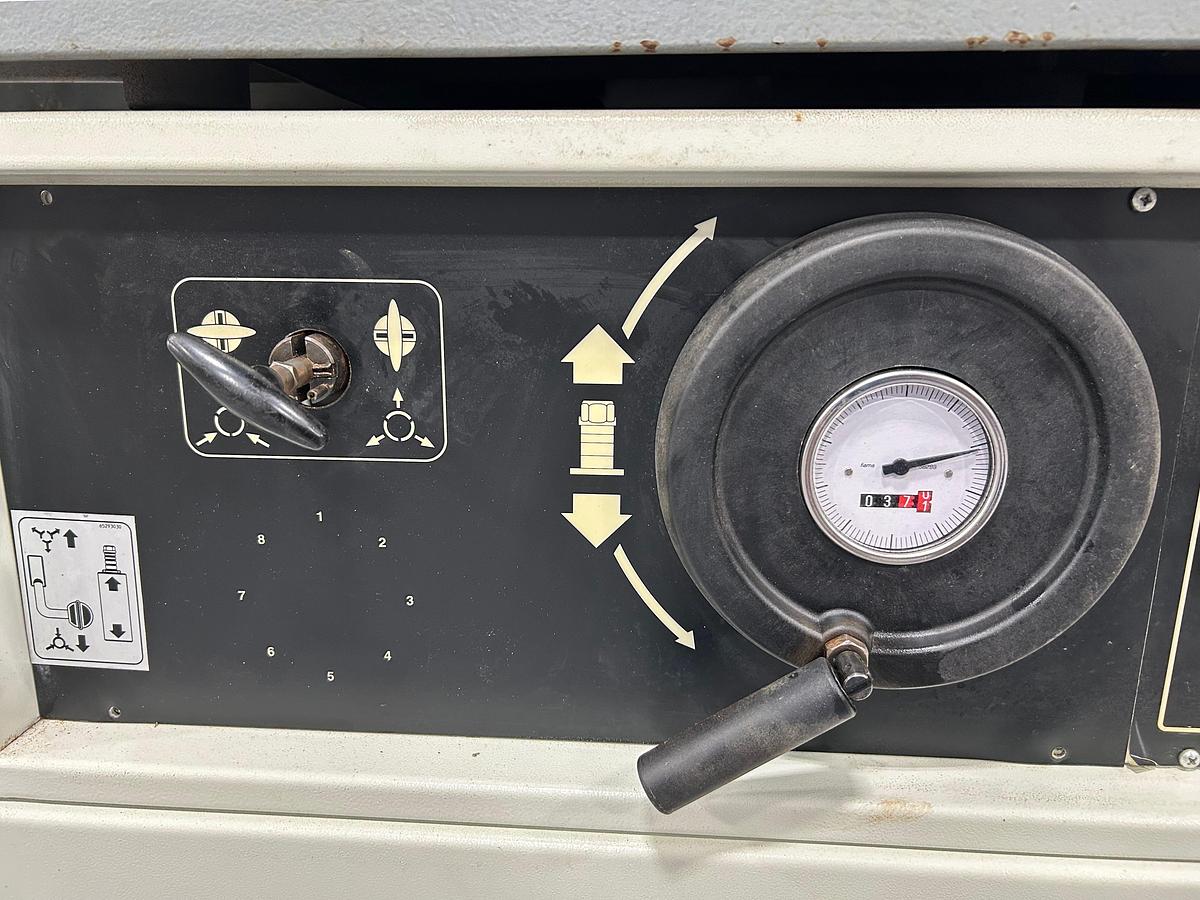

• Manual raise and lower of spindle by handwheel
• Spindle lock for tool changes
• Mechanical readout for spindle height in handwheel
• Electronic indicator for rpm
• 30amps at 220v 3ph
• 9HP main motor
• 1600 CFM dust requirement
• Precision ground cast iron table 51" x 32
• Max tool diameter; 250mm
• Capacity under nut: 6"
• Includes tool box with accessories and wrenches, manuals
• Net weight 1323 lbs
• Includes Steff 2034 3 roll 3phase 220v feeder
