OMEC 650A

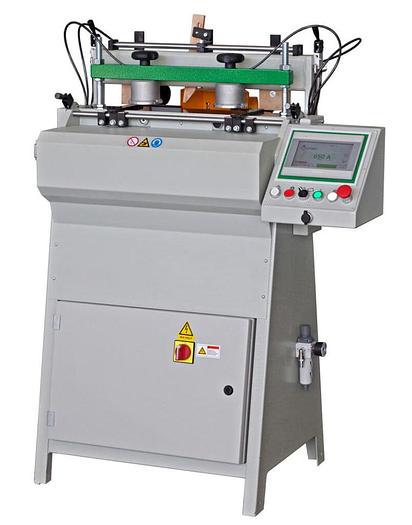

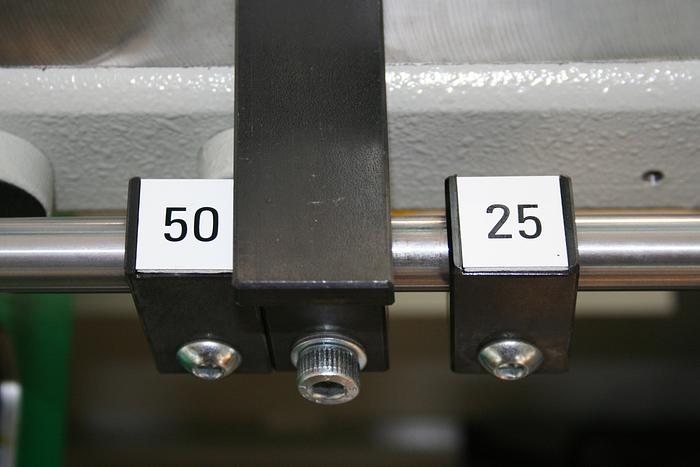

Omec 650-A CNC dovetailer is designed to cut single male or female work pieces, or both simultaneously. Boards can be clamped and released in manual mode by pneumatic valves. The 650-A model is controlled by a CNC system that is programmed to manufacture two types of fixed pitch joints (25mm and 50mm). All the adjustments can be easily carried out following the software instructions of the machine displayed on the Touch-Screen. Pin height, grove depth, groove location, machining speed, number of joints, and tool diameter (for tool compensation) are all controlled by the Touch-Screen. The lock-in and release of the pieces is a pneumatically controlled operation linked to the CNC to allow the machine to work in two separate work zones.

STANDARD EQUIPMENT

Integral Widia cutter installed on the machine in HM (carbide)

Tool kit for adjustments and maintenance

User’s and instruction manual

DIMENSIONAL LIMITS OF WORKPIECES

Minimum & Maximum

Length 7.87”

200mm 59.06”

1500mm

Width 2.36”

60mm 15.75”

400mm

Indent Height 0.33”

8.5mm 0.63”

16mm

Front Thickness 0.31”

8mm 2.36”

60mm

Side Thickness 0.31”

8mm 0.78”

20mm
