Doucet SRH-36-5-23-G-PT
![Used Doucet SRH-36-5-23-G-PT](https://i.machineryhost.com/728f206c2a01bf572b5940d7d9a8fa4c/0cb6c2085800c983e40f07b68f85b423/large-COnveyor_20image.jpg)
Doucet SRH-36-5-23-G-PT
orCall 508-303-0600
Description
Doucet SRH-36-5-23-G-PT
•2022 never used Doucet automatic return conveyor
•Left hand return (HOMAG, Brandt)
•A receiving end of 5’ long x 36” wide
•A return section of 23’ x 36” wide
•A pressure wheel kit for narrow parts
•Includes PT90 panel turner with extended capacity
•36” wide conveyor sections

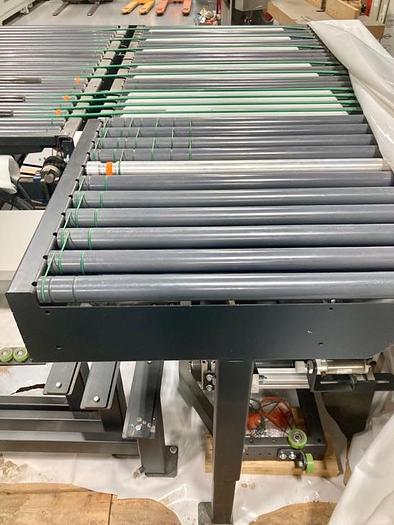

•2” diameter PVC drive rollers on 3” centers
•Belt transfer device 6” wide with 9 belts
•Transfer bypass switch
•Motorized infeed rollers
•Overall length 23’
•($37k replacement cost)
•Best suited for a left hand return edgebander 17’ or longer
Specifications
Manufacturer | Doucet |
Condition | Used |
Min part size | 12” x 12” |
Max panel size feeding all 4 sides | 52” x 52” |
Max panel size feeding long sides | 52” x 96” |
Pass height | 30-42” |

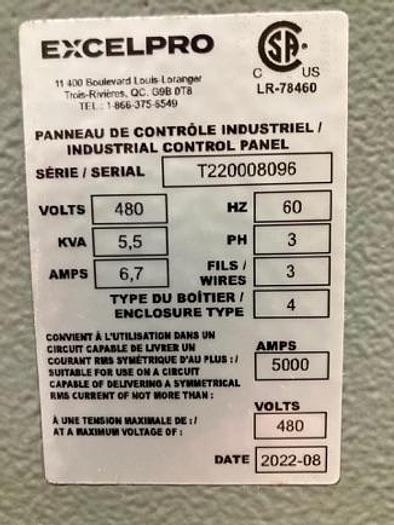

Electrical | 480v 3ph |
