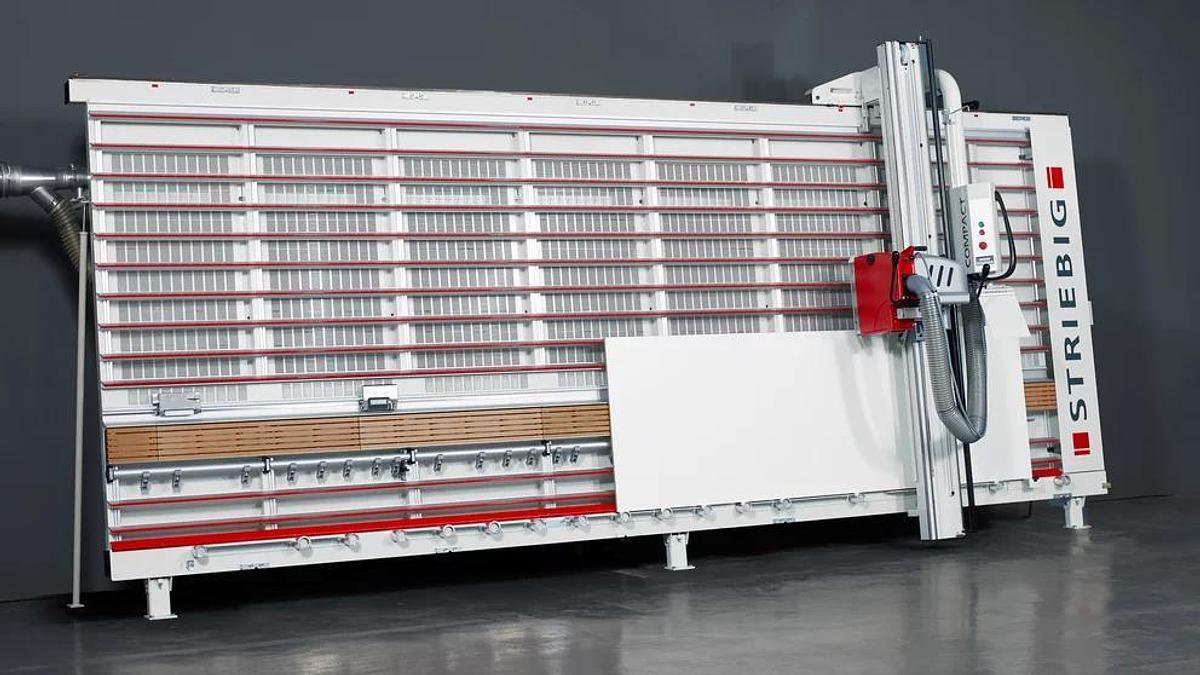

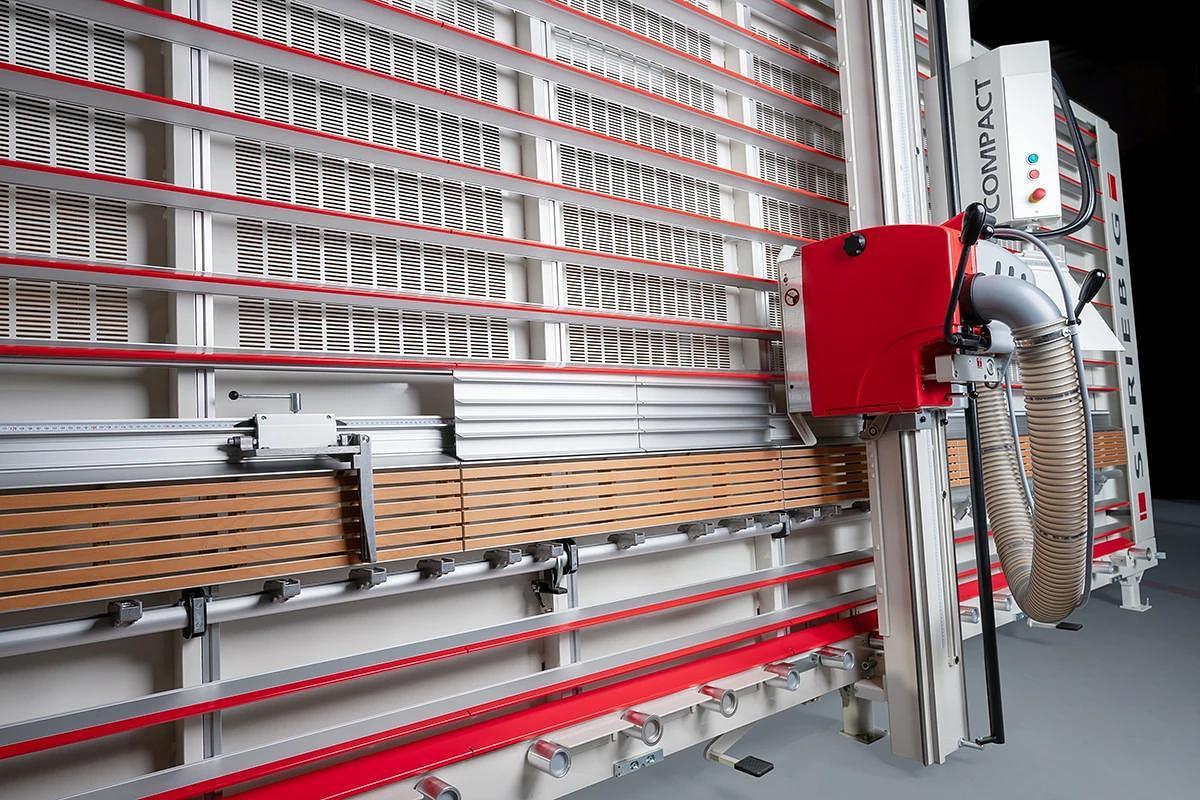

Striebig New Striebig Compact Vertical Panel saw

• Swiss built high precision vertical panel saw
• One piece welded frame for floor mount or wall mount
• Cut capacity: 10'2" x 5'5" *Larger sizes available
• Heavy duty panel support rollers with integral panel stop
• Full length mid shelf with adjustable wooden panel for small parts support
• Automatic up-shifting aluminum support grid, with plastic laths

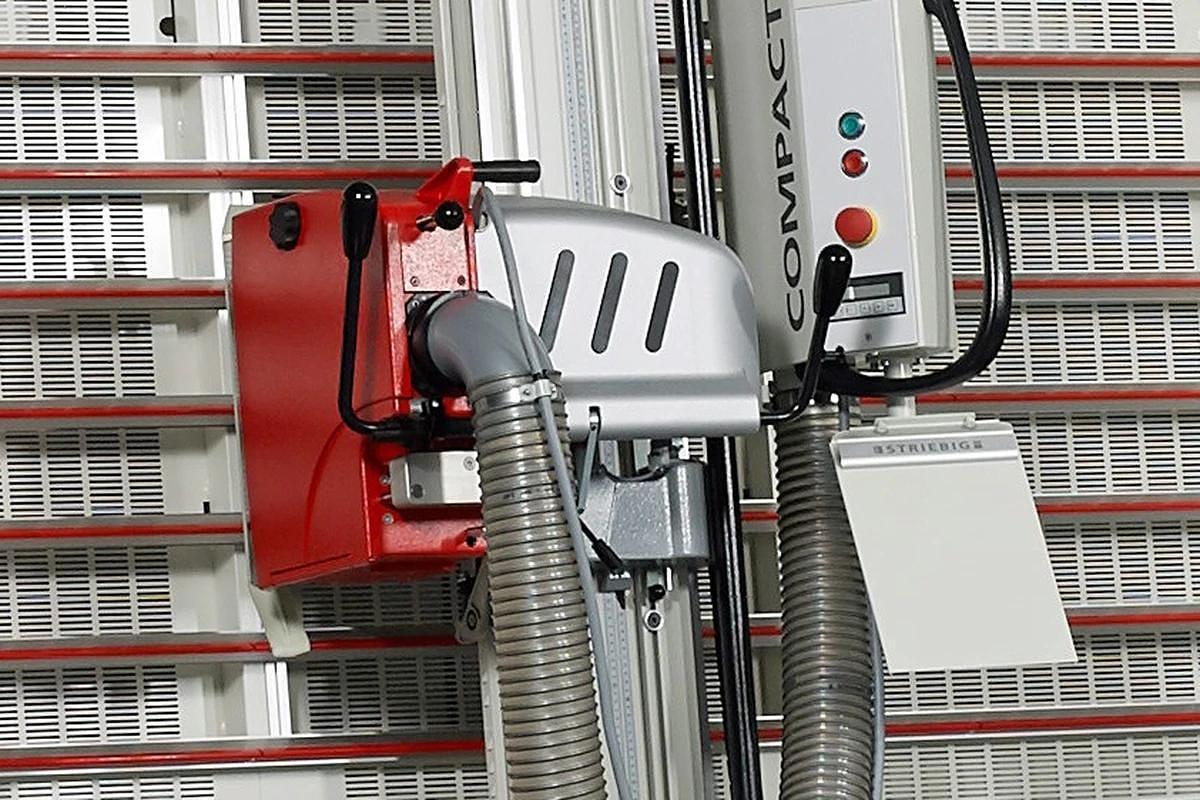

• New high efficiency dust system
• 5.25HP 208-480v 3ph motor with electric brake
• 250mm carbide tipped sawblade with a 2 3/8" cut depth

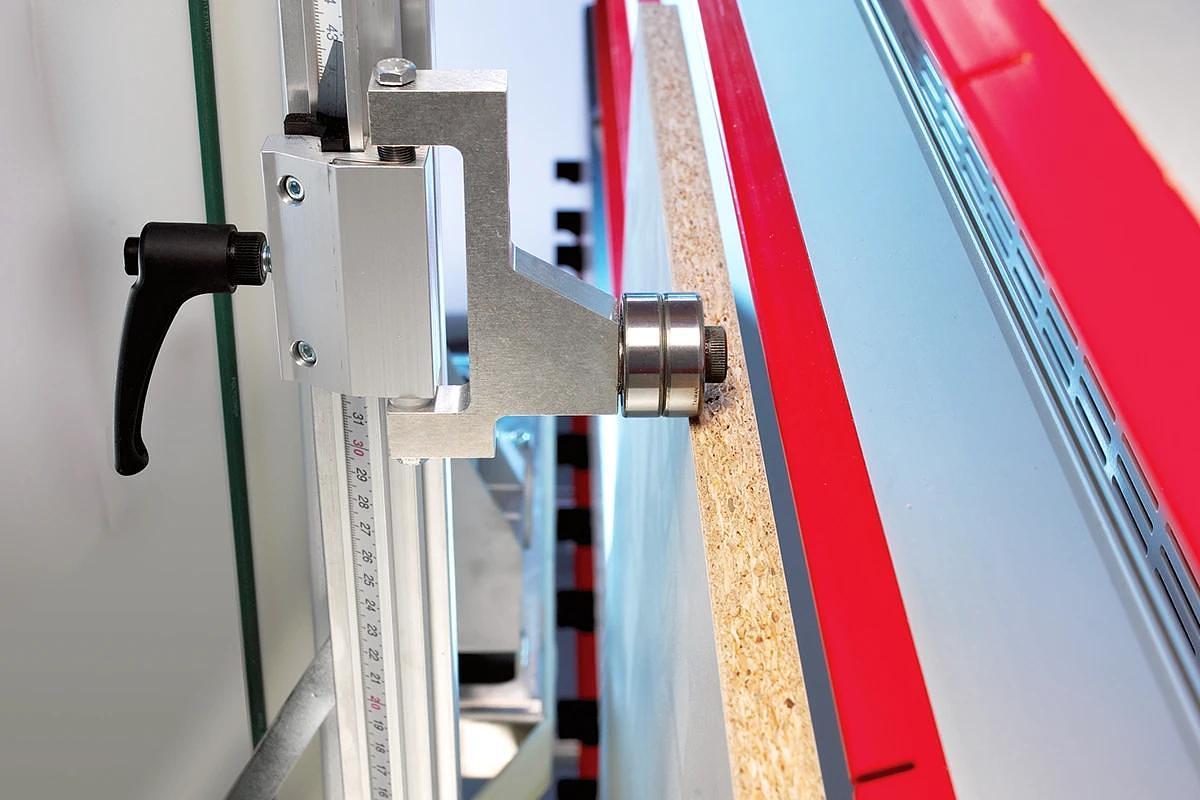

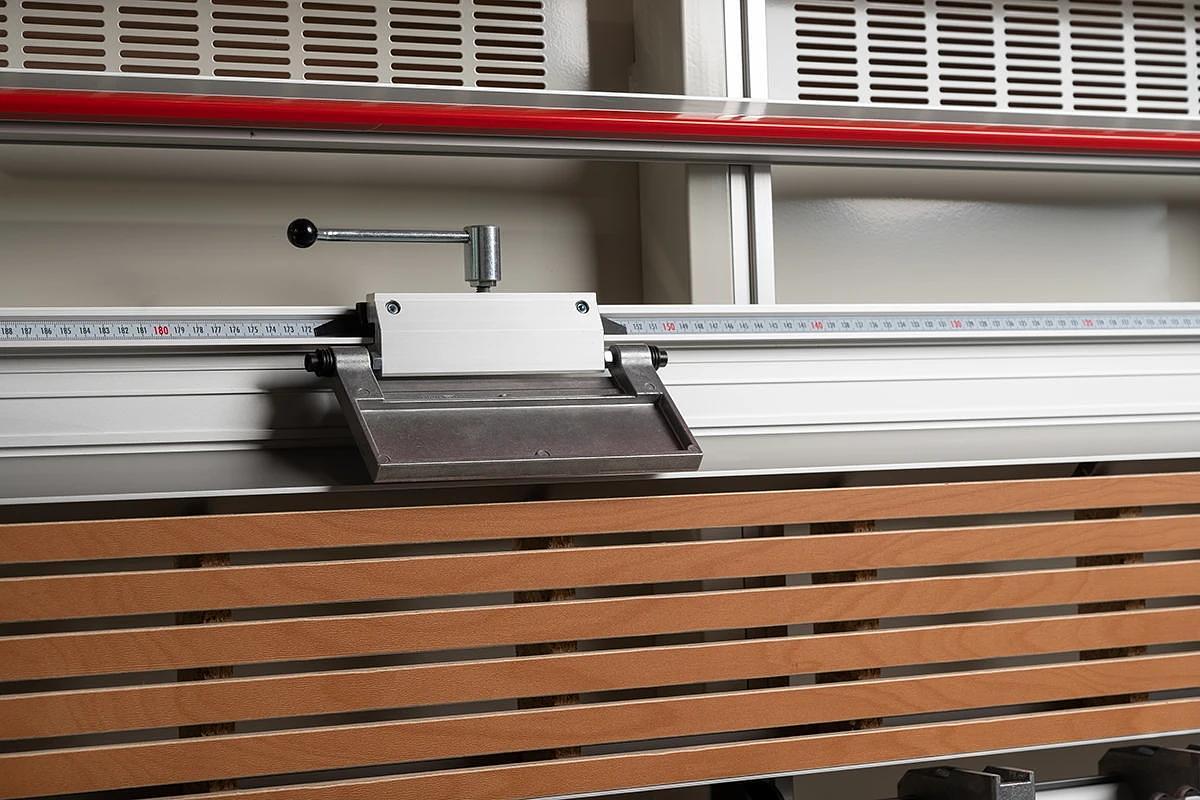

• Template bar on the beam accepts stops for common rip cut settings

Specifications:

• 1/10mm cutting accuracy
• 250mm blade with 30mm bore

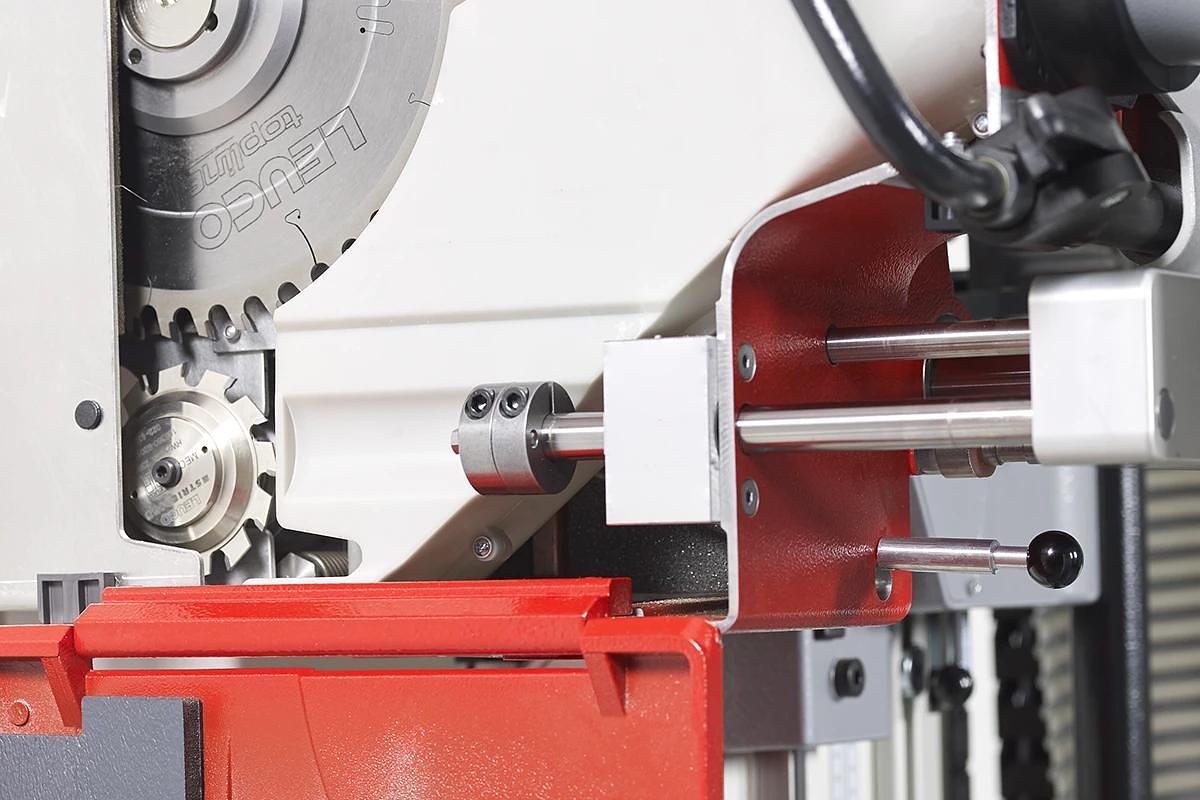

• 80mm scoring split- blade, 20mm bore
• Weigth: 1100lbs net
• Dust collection: 1000 cfm (two (2) 100mm dust ports, 3rd port at lower frame is optional

*optional true split blade scoring unit (retrofittable)

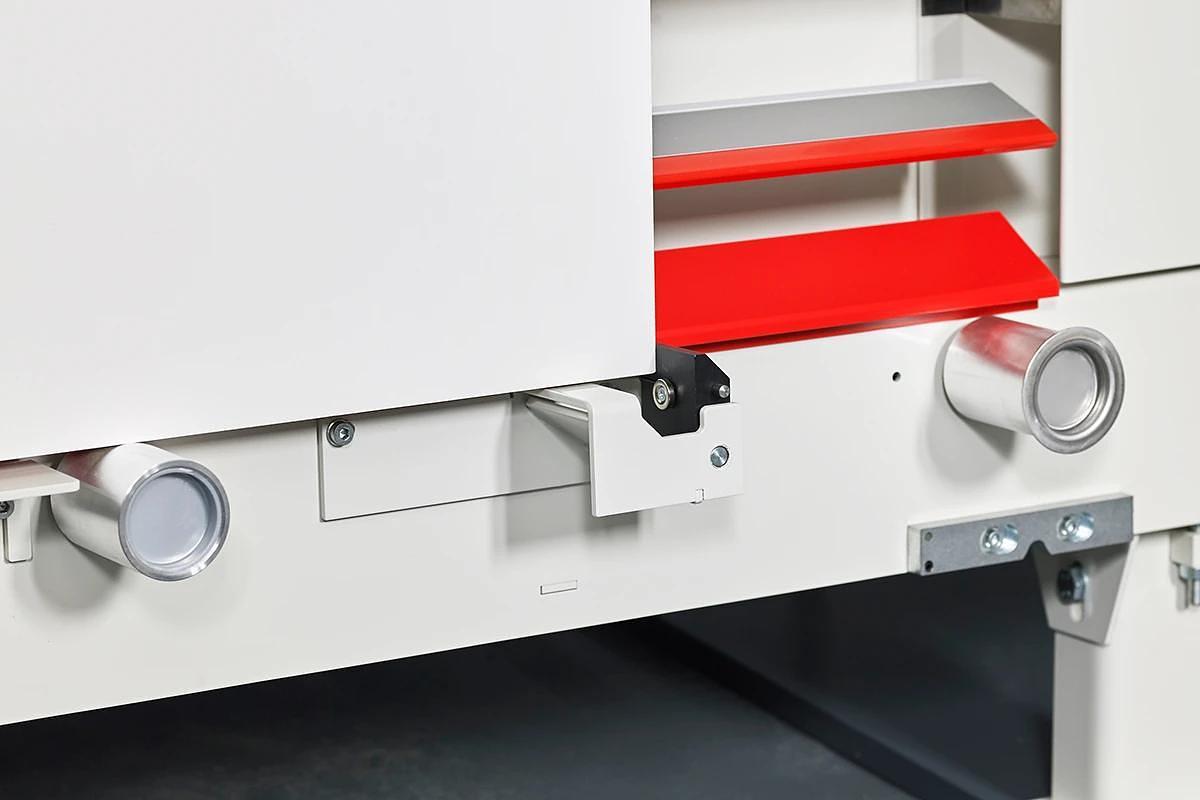

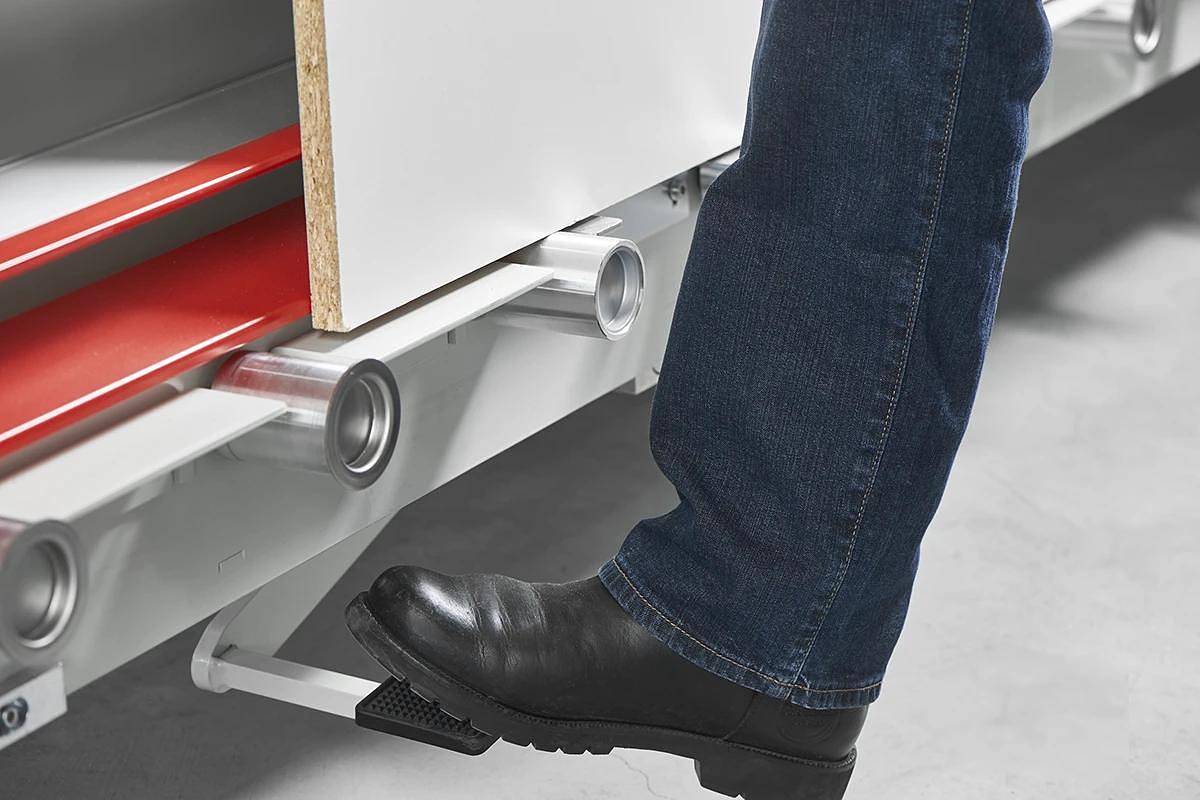

*optional locking panel rollers, foot pedal operated

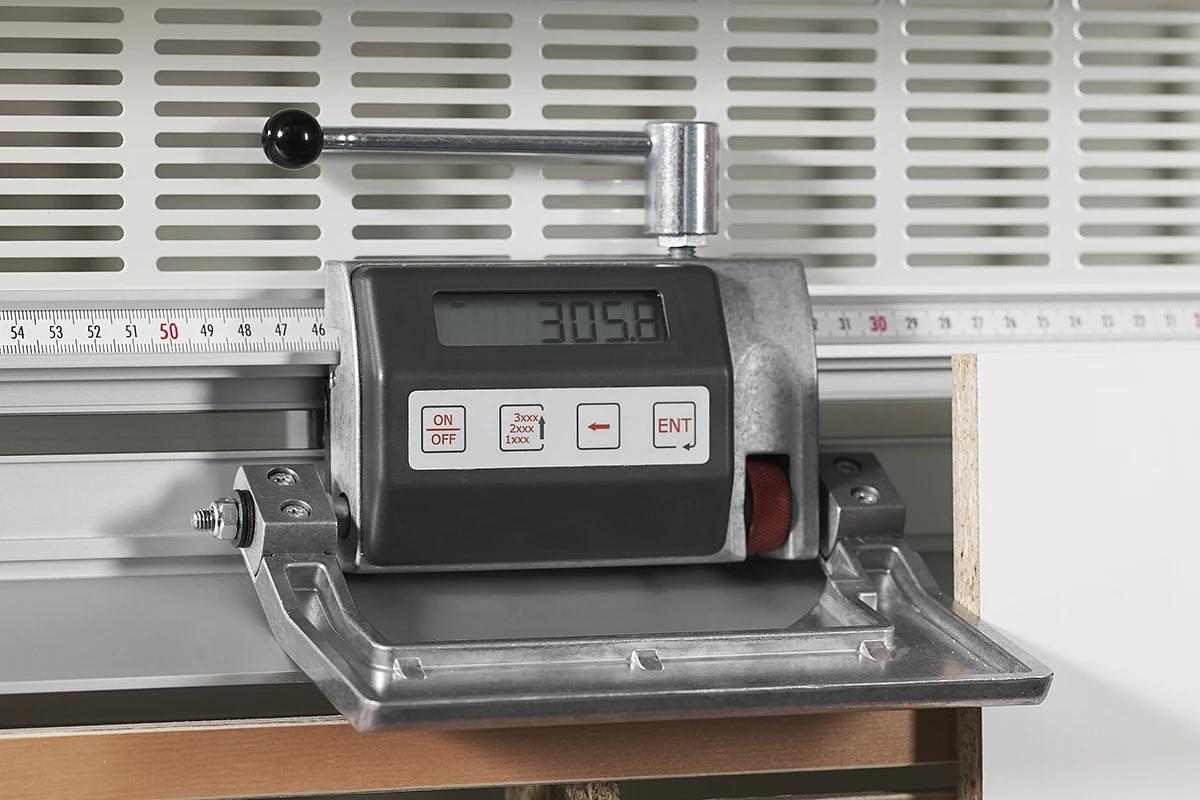

*optional Digital stops
